Quantity:

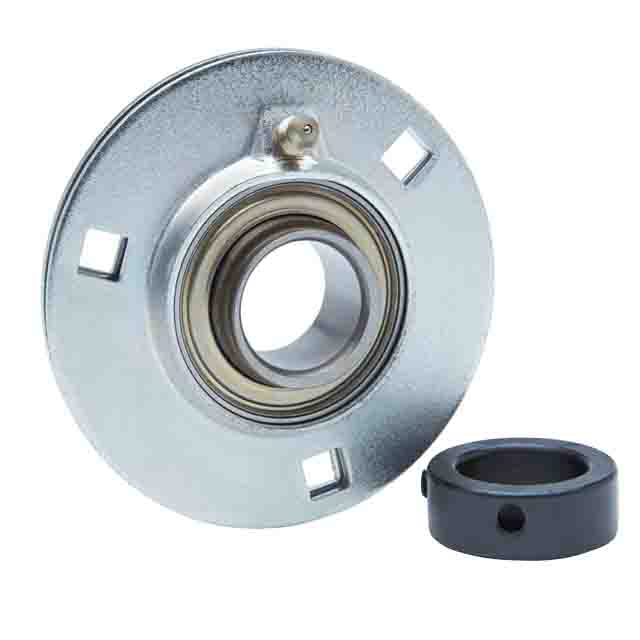

SAPF200

drawing

SAPF

parameter

Shaft diameter

Block bearing model

Dimensions (mm)

Thread specification

Bearing Type

Block model

weight

(kg)

d

L

P

A2

t

N1

S

B1

(min.)

(mm)

1/2

5/8

11/16

12

15

17

SAPF201

201-8

202

202-10

203

203-11

82

64

7

2

7,5

6,5

28,6

1/4

M6

SA201

201-8

202

202-10

203

203-11

PF203

0,29

3/4

20

SAPF204-12

204

91

71

8

2

9

7,5

30,9

5/16

M8

SA204-12

204

PF204

0,31

7/8

15/16

1

25

SAPF205-14

205-15

205

205-16

95

76

9

2

9

7,5

30,9

5/16

M8

SA205-14

205-15

205

205-16

PF205

0,41

1-1/8

1-3/16

1-1/4

30

SAPF206-18

206

206-19

206-20

113

90

9

2,5

10,5

9

35,7

3/8

M10

SA206-18

206

206-19

206-20

PF206

0,67

1-1/4

1-5/16

1-3/8

1-7/16

35

SAPF207-20

207-21

207-22

207

207-23

122

100

10

2,5

10,5

9,5

38,9

3/8

M10

SA207-20

207-21

207-22

207

207-23

PF207

0,87

1-1/2

1-9/16

40

SAPF208-24

208-25

208

148

119

12

3,5

13,5

11

43,7

1/2

M12

SA208-24

208-25

208

PF208

1,3
