Shaft diameter | Block bearing model | Dimensions (mm) | Thread specification | Bearing Type | Block model | Weight (kg) |
d | L | P | A2 | t | N1 | S | B |
(min.) | (mm) |
1/2 5/8 11/16 | 12 15 17 | SBPF201 201-8 202 202-10 203 203-11 | 82 | 64 | 7 | 2 | 7,5 | 6 | 22 | 1/4 | M6 | SB201 201-8 202 202-10 203 203-11 | PF203 | 0,27 |
3/4 | 20 | SBPF204-12 204 | 91 | 71 | 8 | 2 | 9 | 7 | 25 | 5/16 | M8 | SB204-12 204 | PF204 | 0,3 |

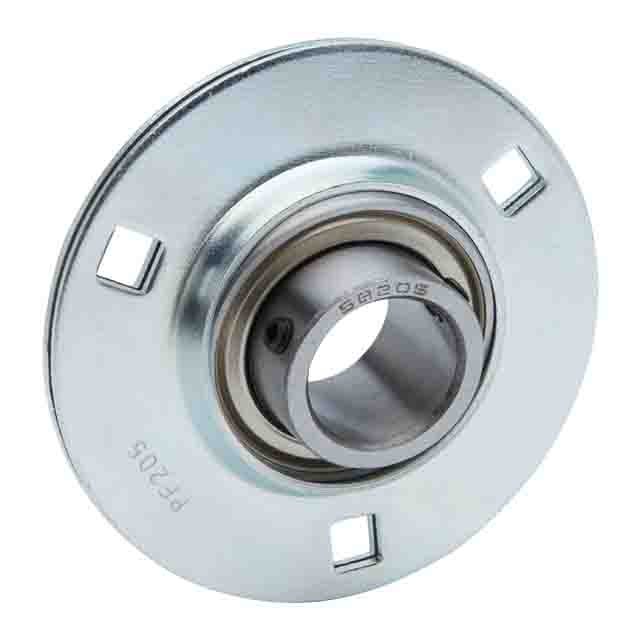

7/8 15/16 1 | 25 | SBPF205-14 205-15 205 205-16 | 95 | 76 | 9 | 2 | 9 | 7,5 | 27 | 5/16 | M8 | SB205-14 205-15 205 205-16 | PF205 | 0,38 |
1-1/8 1-3/16 1-1/4 | 30 | SBPF206-18 206 206-19 206-20 | 113 | 90 | 9 | 25 | 10,5 | 8 | 30 | 3/8 | M10 | SB206-18 206 206-19 206-20 | PF206 | 0,62 |
1-1/4 1-5/16 1-3/8 1-7/16 | 35 | SBPF207-20 207-21 207-22 207 207-23 | 122 | 100 | 10 | 2,5 | 10,5 | 8,5 | 32 | 3/8 | M10 | SB207-20 207-21 207-22 207 207-23 | PF207 | 0,82 |
1-1/2 1-9/16 | 40 | SBPF208-24 208-25 208 | 148 | 119 | 12 | 3,5 | 13,5 | 9 | 34 | 1/2 | M12 | SB208-24 208-25 208 | PF208 | 1,1 |
