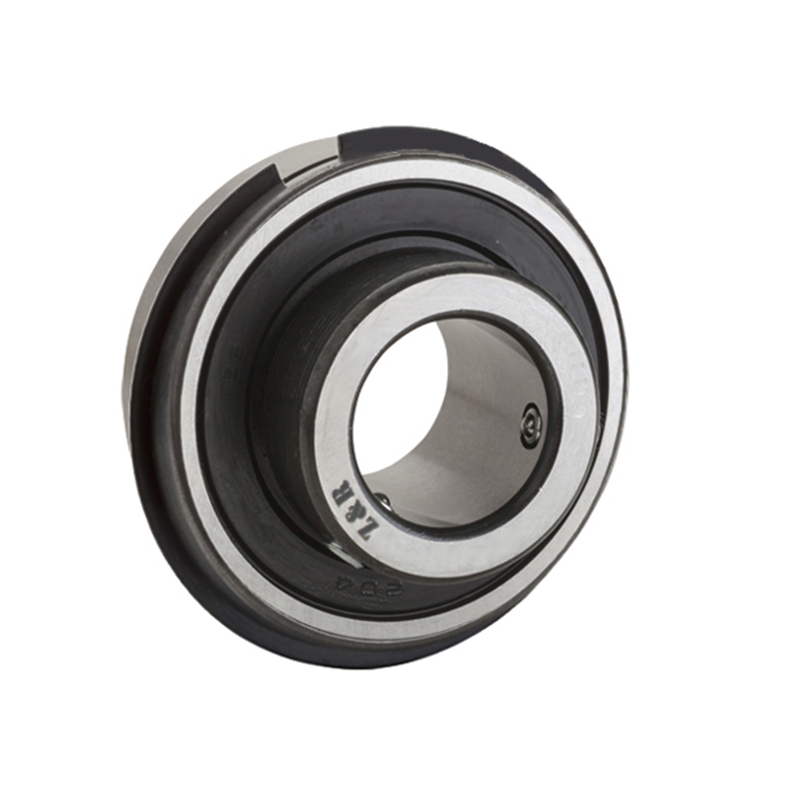

ASSNR200

drawing

parameter

Shaft diameter

Bearing Type

Dimensions (mm)

Set screw specifications (mm)
(UNF)

Load (Kgf)

Weight (Kg)

(D)

(min.)

(mm)

D

d1

Bi

n

Be

Y

an

T

G

Cr

Cor


12

ASS 201 NR

40,0

24,3

22,0

6,0

12,0

44,6

2,0

1,1

4,2

M5x0,8
10-32

970

490

0,12
0,11
0,10

1/2

ASS 201-8 NR

9/16

ASS 202-09 NR


15

ASS 202 NR

5/8

ASS 202-10 NR


17

ASS 203 NR

11/16

ASS 203-11 NR

3/4

20

ASS 204-12 NR










M6x1
1/4-28

1310

680

0,17

ASS 204 NR

47,0

29,6

25,0

7,0

14,0

52,7

2,4

1,1

4,2

7/8

25

ASS 205-14 NR

52,0

33,9

27,0

7,5

15,0

57,9

2,4

1,1

5,0

M6x1
1/4-28

1430

800

0,20


ASS 205 NR

1

ASS 205-16 NR

1-1/16

30

ASS 206-17 NR

62,0

40,8

30,0

9,0

16,0

67,7

3,2

1,6

5,0

M6x1
1/4-28

2000

1140

0,31

1-1/8

ASS 206-18 NR


ASS 206 NR

1-3/16

ASS 206-19 NR

1-1/4

ASS 206-20 NR

1-1/4

35

ASS 207-20 NR

72,0

46,8

32,0

6,5

17,0

78,6

3,2

1,6

6,0

M6x1
1/4-28

2640

1550

0,49

1-5/16

ASS 207-21 NR

1-3/8

ASS 207-22 NR


ASS 207 NR

1-7/16

ASS 207-23 NR

1-1/2

40

ASS 208-24 NR

80,0

53,0

34,0

5,0

18,0

86,6

3,2

1,6

6,0

M8x1
5/16-24

2990

1860

0,50

1-9/16

ASS 208-25 NR


ASS 208 NR
