Quantity:

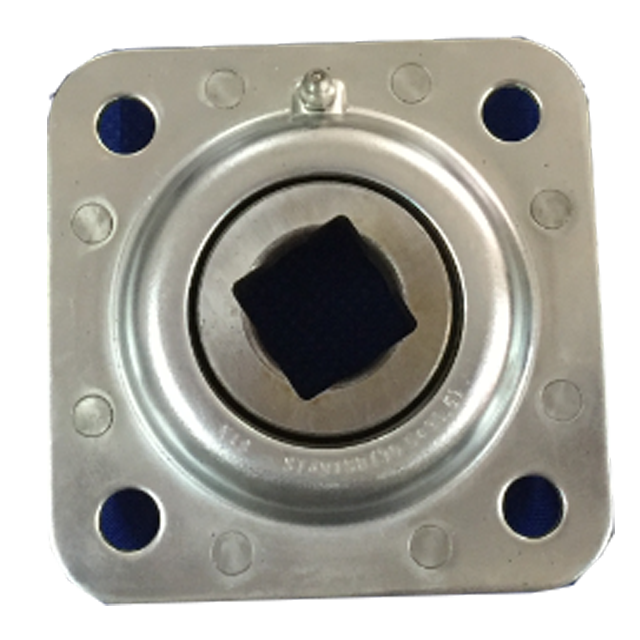

Bearing with flange

drawing

drawing

parameter

Shaft diameter

Bearing Type

Dimensions(mm/in.)

Load (N)

d

di

H

a

B

m

t

c

S

Si

S2

Cr

Cor


32.0

ST209-1-1/8

29.972

127.0

42.8

42

6

127.0

13.5

13.5

17.45

32700

20900


34.5

ST209-30S

31.353

127.0

42.8

42

6

127.0

13.5

13.5

17.45

32700

20900


34.5

ST209-1-1/4

32.766

127.0

42.8

42

6

127.0

13.5

13.5

17.45

32700

20900

38.860


ST491B


127.0

42.8

42

6

127.0

13.5

13.5

17.45

32700

20900

40.878


ST209-40R


127.0

42.8

42

6

127.0

13.5

13.5

17.45

32700

20900

45.000


ST491A


127.0

42.8

42

6

127.0

13.5

13.5

17.45

32700

20900

45.340


ST209-45R


127.0

42.8

42

6

127.0

13.5

13.5

17.45

32700

20900

45.000


ST491AD


121.0

46.0

42

6

121.0

13.5



32700

20900


42.0

ST211-1-1/2

38.890

139.7

50.8

46

8

139.7

13.5

13.5

17.45

43300

29200


43.1

ST211-40S

40.878

139.7

50.8

46

8

139.7

13.5

13.5

17.45

43300

29200

50.400


ST211-50R


139.7

50.8

46

8

139.7

13.5

13.5

17.45

43300

29200

55.575


ST211-55R


139.7

50.8

46

8

139.7

13.5

13.5

17.45

43300

29200

45.212


ST211-1-3/4


139.7

55.6

46

8

139.7

13.5

13.5

17.45

43300

29200

55.575


ST211-2-3/16


139.7

55.6

46

8

139.7

13.5

13.5

17.45

43300

29200

49.238


ST211-1-15/16


139.7

69.9

46

8

139.7

13.5

13.5

17.45

43300

29200

55.000


ST211


139.7

55.6

46

8

139.7

13.5

13.5

17.45

43300

29200

55.562


ST740


139.7

55.6

45

7

139.7

13.5

13.5

17.45

43300

29200
