Quantity:

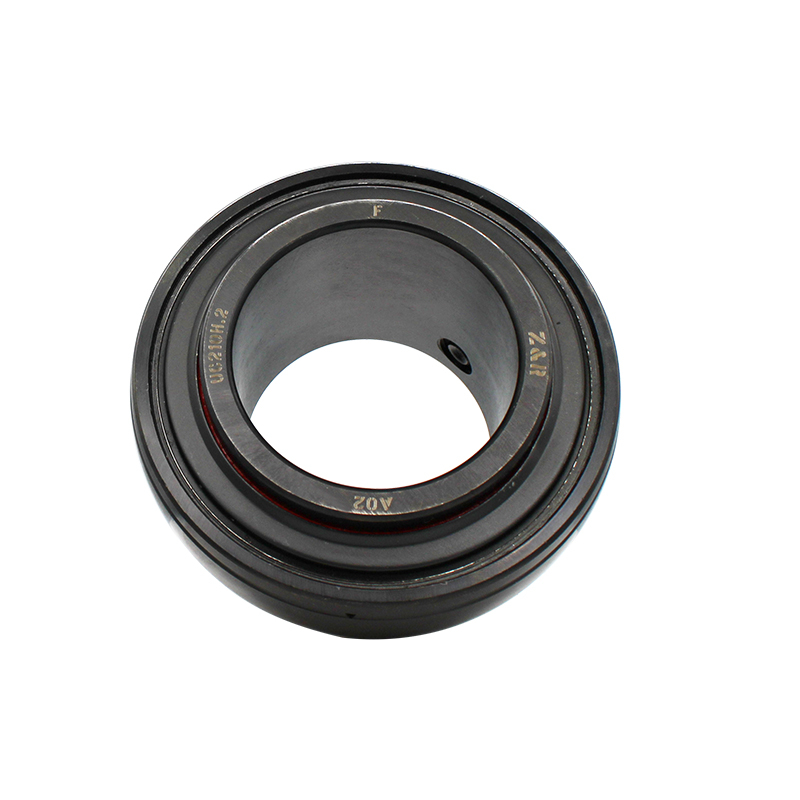

UC200 H2

drawing

parameter

Shaft diameter

mm/in.

Bearing Type

NO.

Dimensions

(mm)

Set screw specifications

mm

Load

(Kgf)

weight

转速

(rpm)

d

D

d1

Bi

n

m

Be

G

UNF

Cr

Cor

(Kg)

3/4

UC 204-12 H.2

47.0

29.0

31.0

12.7

18.3

16.0

5.0

M6x1
1/4-28

1310

680

0.20

3800

20

UC 204 H.2

25

UC 205 H.2

52.0

34.0

34.0

14.3

19.7

17.0

5.5

M6x1
1/4-28

1430

800

0.20

3000

1

UC 205-16 H.2

30

UC 206 H.2

62.0

40.5

38.1

15.9

22.2

19.0

6.0

M6x1

2000

1140

0.30

2500

35

UC 207 H.2

72.0

48.0

42.9

17.5

25.4

20.0

6.5

M8x1

2640

1550

0.50

2100

40

UC 208 H.2

80.0

53.0

49.2

19.0

30.2

21.0

8.0

M8x1

2990

1860

0.65

1900

1-3/4

UC 209-28 H.2

85.0

57.0

49.2

19.0

30.2

22.0

8.0

M8x1
5/16-24

3350

2120

0.70

1700

45

UC 209 H.2

50

UC 210 H.2

90.0

62.0

51.6

19.0

32.6

23.0

9.0

M10x1.25

3600

2370

0.80

1500

2

UC 211-32 H.2

100.0

69.0

55.6

22.2

33.4

25.0

9.0

M10x1.25
3/8-24

4400

2980

1.15

1400

55

UC 211 H.2

60

UC 212 H.2

110.0

75.0

65.1

25.4

39.7

27.0

10.5

M10x1.25

5350

3350

1.55

1300

65

UC 213 H.2

120.0

82.0

65.1

25.4

39.7

28.0

12.0

M12x1.25

5850

4080

1.75

1200

70

UC 214 H.2

125.0

86.5

74.6

30.2

44.4

30.0

12.0

M12x1.25

6350

4590

2.00

1100

2-15/16

UC 215-47 H.2

130.0

91.5

77.8

33.3

44.5

30.0

12.0

M12x1.25
7/16-20

6750

5050

2.20

1000

75

UC 215 H.2

80

UC 216 H.2

140.0

98.0

82.6

33.3

49.3

33.0

14.0

M12x1.25

7400

5530

2.80

940

90

UC 218 H.2

160.0

111.0

96.0

39.7

56.3

37.0

14.0

M12x1.25

9750

7300

4.50

830
