You are here: Home » Products » Insert-Bearings » UK » UK200
Quantity:

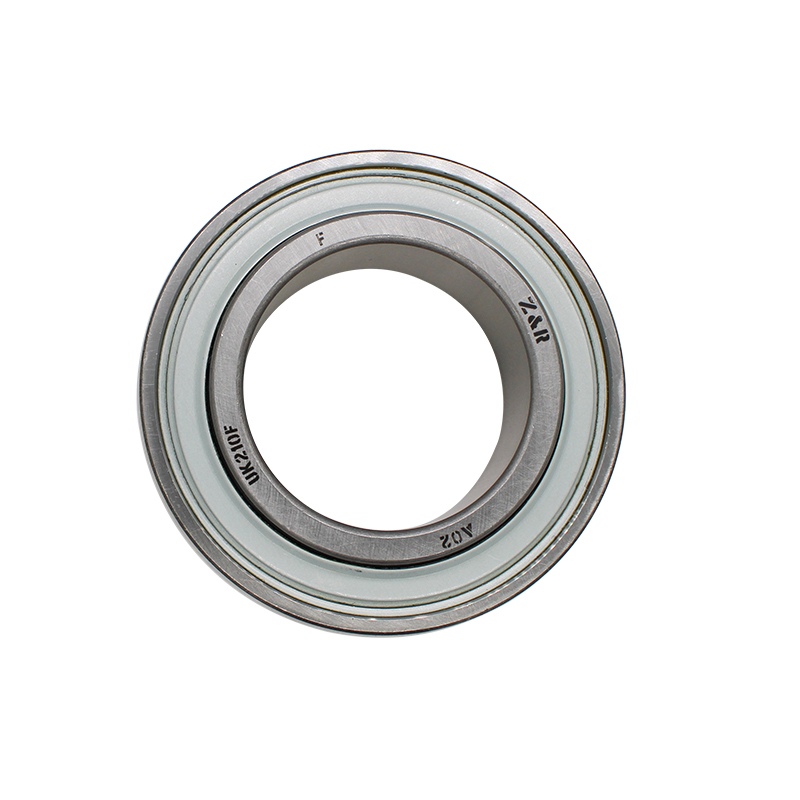

UK200

Tapered hole (with fastener)
UK2 (X, 3) Ordinary products
UK2 (3) R3 triple seal
A grease-sealed deep groove ball bearing composed of an outer ring with a spherical outer diameter surface equipped with an oil supply structure and an inner ring with a conical hole. According to the sealing device, it is divided into two types: ordinary products (with oil seal and oil throw ring) and triple seal ring products (accessory symbol R3).
The fixing to the shaft is performed by fasteners. UK type bearings (with fasteners) are most suitable for long shaft applications.
For UK type bearings, the nominal model number of applicable fasteners is appended to the nominal model number of the bearing.
drawing







parameter

Shaft diameter (mm/in.)

Bearing Type

Adapter sleeve model

Dimensions (mm)

Load (Kgf)

weight

d

No.

D

Bi

Be

L

m

W

d1

Y

Cr

Cor

(Kg)

3/4

UK 205

HE2305

52.0

21.0

17.0

35.0

18.5

38.0

25.0

8.0

1430

800

0.25

20

H2305

7/8

UK 206

HS2306

62.0

25.0

19.0

38.0

20.5

45.0

30.0

8.0

2000

1140

0.40

15/16

HA2306

25

H2306

1

HE2306

1-1/8

UK 207

HS2307

72.0

27.0

20.0

43.0

22.5

52.0

35.0

9.0

2640

1550

0.55

30

H2307

1-3/16

HA2307

1-1/4

UK 208

HE2308

80.0

29.0

21.0

46.0

24.5

58.0

40.0

10.0

2990

1860

0.70

1-5/16

HA2308

1-3/8

HS2308

35

H2308

1-7/16

UK 209

HA2309

85.0

30.0

22.0

50.0

26.0

65.0

45.0

11.0

3350

2120

0.75

1-1/2

HE2309

40

H2309

1-5/8

HS2309

1-11/16

UK 210

HA2310

90.0

31.0

23.0

55.0

27.5

70.0

50.0

12.0

3600

2370

0.90

1-3/4

HE2310

45

H2310

1-7/8

UK 211

HS2311

100.0

33.0

25.0

59.0

28.5

75.0

55.0

12.0

4400

2980

1.15

1-15/16

HA2311

50

H2311

2

HE2311

2-1/8

UK 212

HS2312

110.0

36.0

27.0

62.0

31.0

80.0

60.0

13.0

5350

3350

1.45

55

H2312

2-3/16

UK 213

HA2313

120.0

36.0

28.0

65.0

32.0

85.0

65.0

14.0

5850

4080

1.80

2-1/4

HE2313

60

H2313

2-3/8

HS2313

2-1/2

UK 215

HE2315

130.0

41.0

30.0

73.0

35.5

98.0

75.0

15.0

6750

5050

2.60

65

H2315

2-3/4

UK 216

HE2316

140.0

44.0

33.0

78.0

39.0

105.0

80.0

17.0

7400

5530

3.30

70

H2316

75

UK 217

H2317

150.0

44.0

35.0

82.0

40.0

110.0

85.0

18.0

8500

6510

3.90

3

HE2317

80

UK 218

H2318

160.0

48.0

37.0

86.0

42.0

120.0

90.0

18.0

9750

7300

4.70
